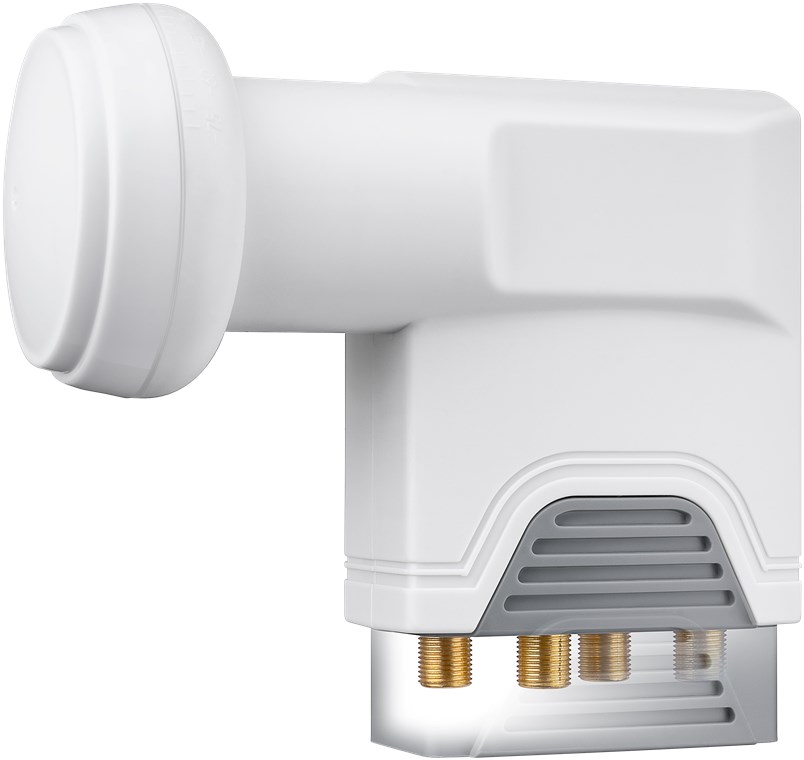

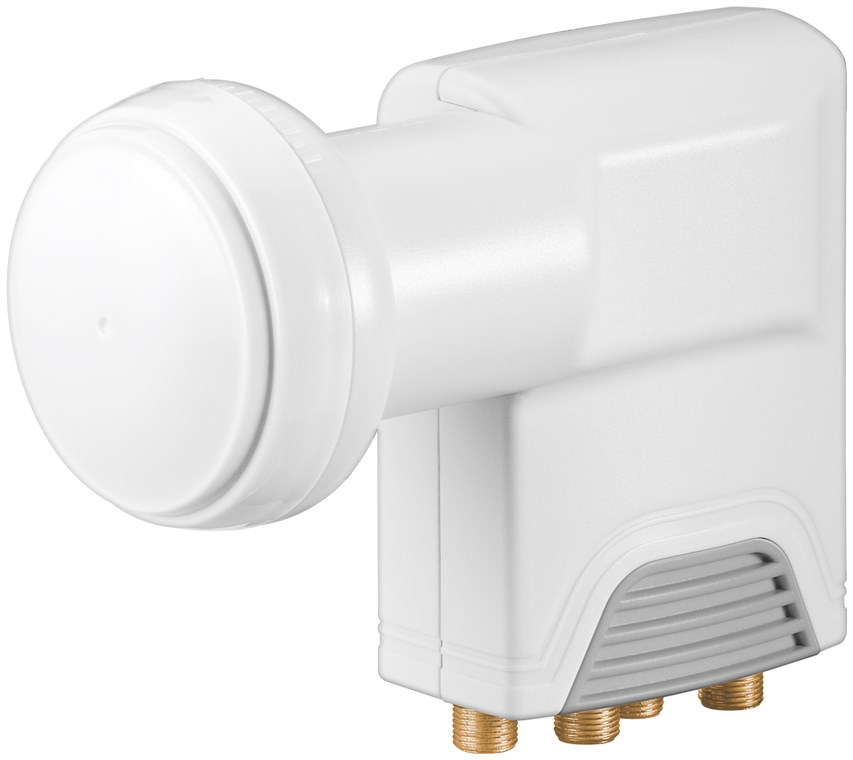

Universal Quattro LNB
Digital SAT-LNB (DVB-S2) for use with multiswitches only (4K/UHD/HDTV/3D reception)
- for multi-device SAT systems with multiswitch

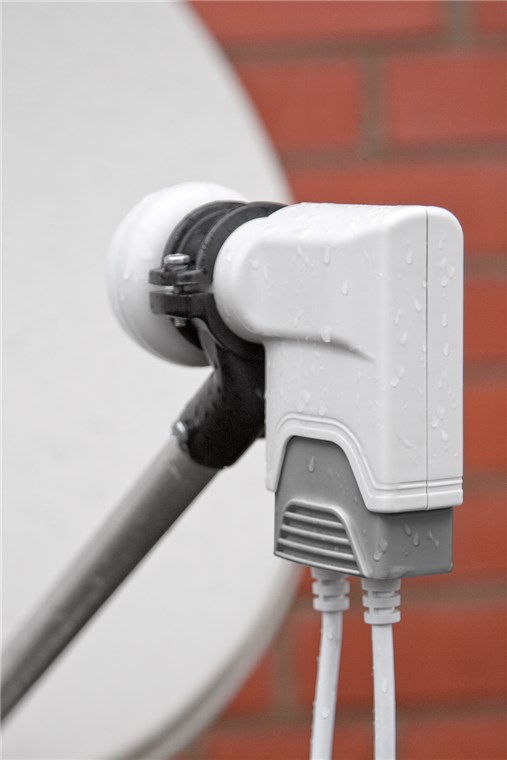

- completely encapsulated weather protection housing

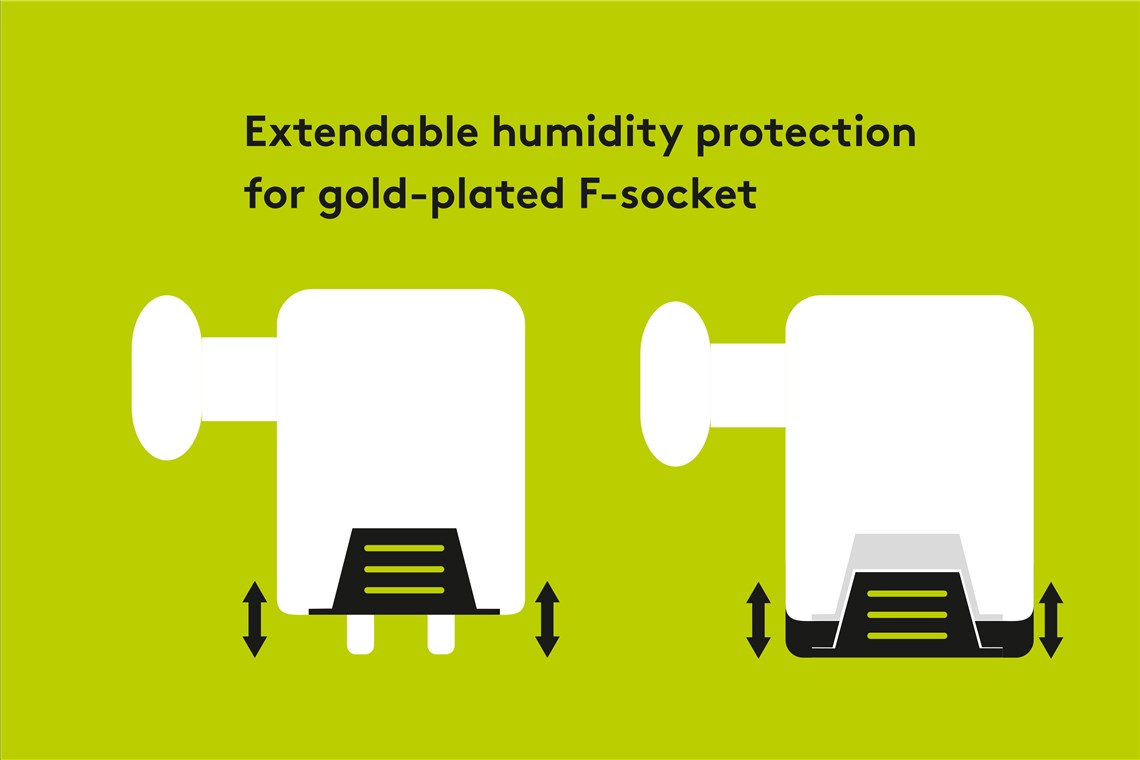

- extendable humidity protection for gold-plated F-socket
- higher signal strength thanks to a 0.1 dB noise factor
General
| Markings |
CE, WEEE |
| Color |
white, grey |
| Consumption Unit |
1 pc. in cardboard box |
| Packaging type |
Retail Box |
| Diameter Feedhorn |
40 |

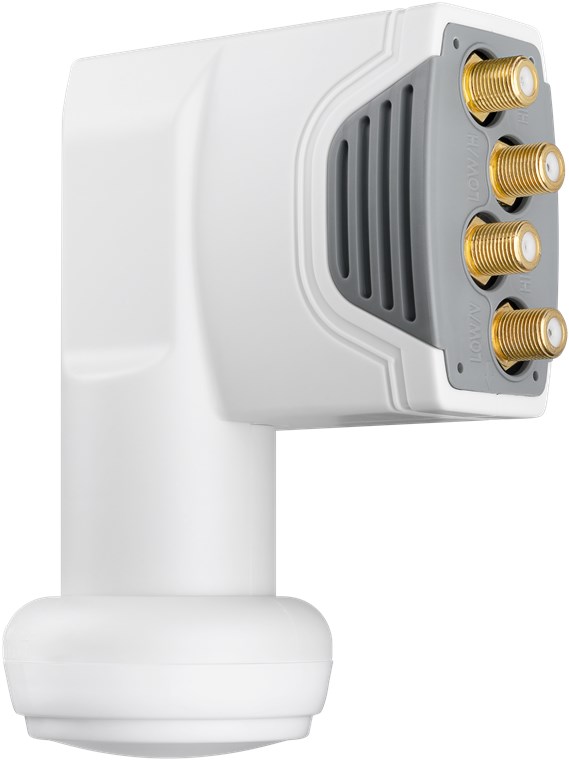

Device connections
| Output, contact material |
gold-plated |
| Number of outputs |
4 ports |
| Output, type |
F female |
Signal transmission
| Input frequency high band |
11,70 - 12,75 GHz |
| LOW frequency High |
10.6 |
| noise figure |
0.1 |
| Signal amplification Legacy |
52 - 62 (typ. 57) dB |
| LOW frequency Low |
9.75 |
| Input frequency low band |
10,70 - 11,70 GHz |
| Output frequency high band |
1.100 - 2.150 MHz |
| Output frequency low band |
950 - 1.950 MHz |
| Transmission modes |
DVB-S, DVB-S2 |
