Product and packaging similar. Subject to modifications and errors.

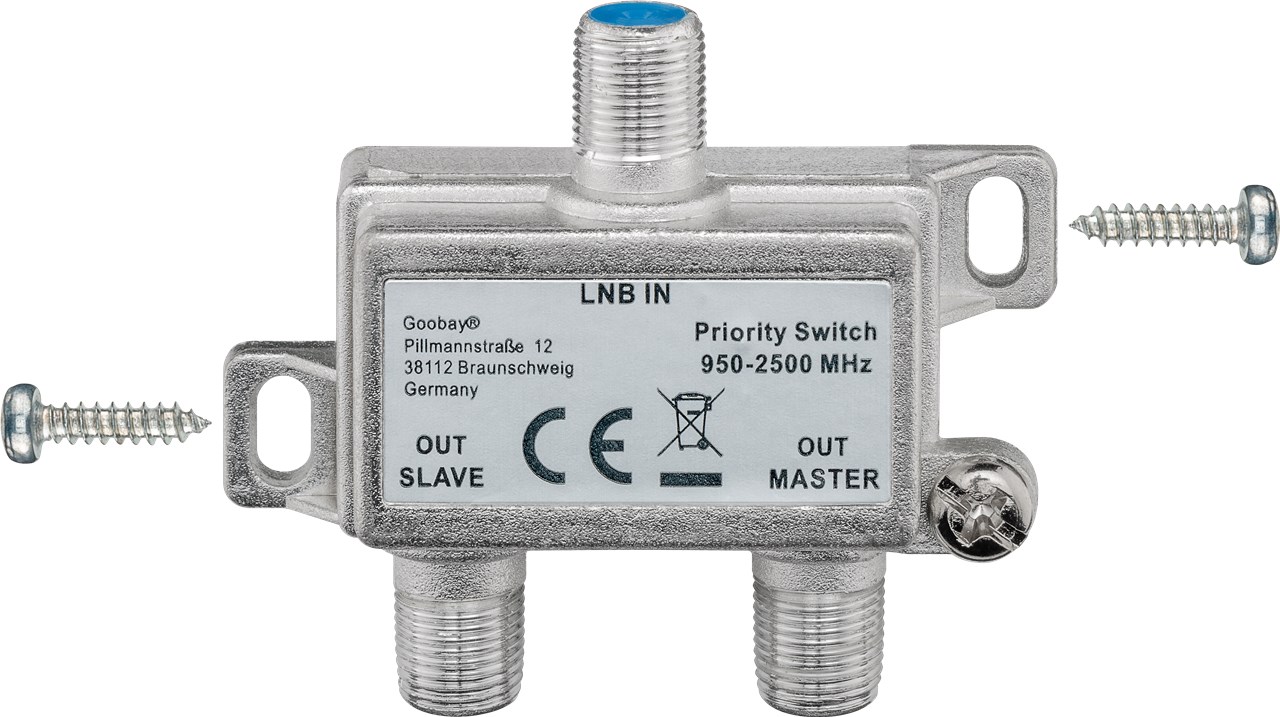

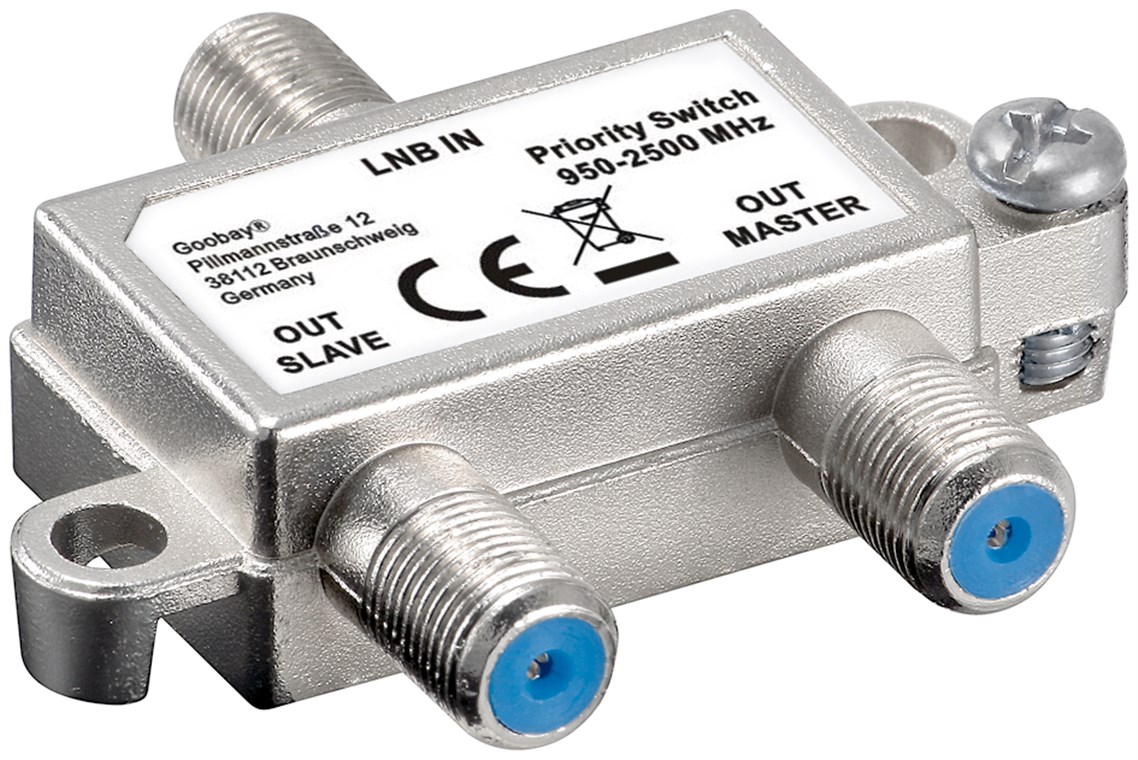

SAT priority switch

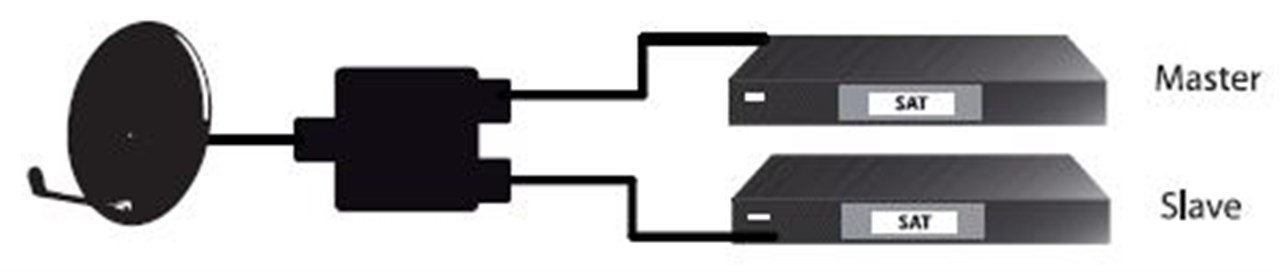

distributes 1 LNB to 2 SAT Receivers

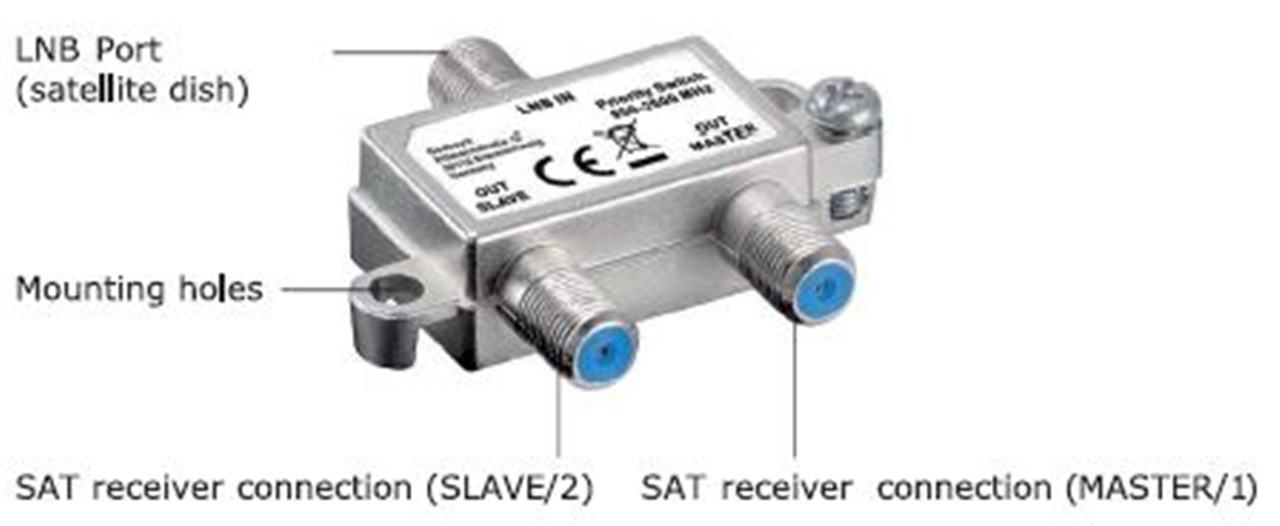

- connection of 2 SAT receiver at 1 coax cable (Master/Slave connection)
- master output: receiver (1) connected and control LNB output / program switching
- slave output: receiver (2) connected and control LNB output/program switching only, if the Receiver (1) is switched off / Standby
- receiver Off/Standby is defined by no DC
- control signal is 13 V / 18 V, 22 KHz ON/OFF, DiSEqC from receiver 1/2
- frequency range: 950 MHz ~ 2400 MHz
- decoupled diodes
Technical specifications
General
| Height | 15.5 mm |
| Markings | CE, WEEE |
| Width | 49.8 mm |
| Length | 60.5 mm |
| Color | silver |
| Consumption Unit | 1 pc. in cardboard box |
| Packaging type | Bulk |
