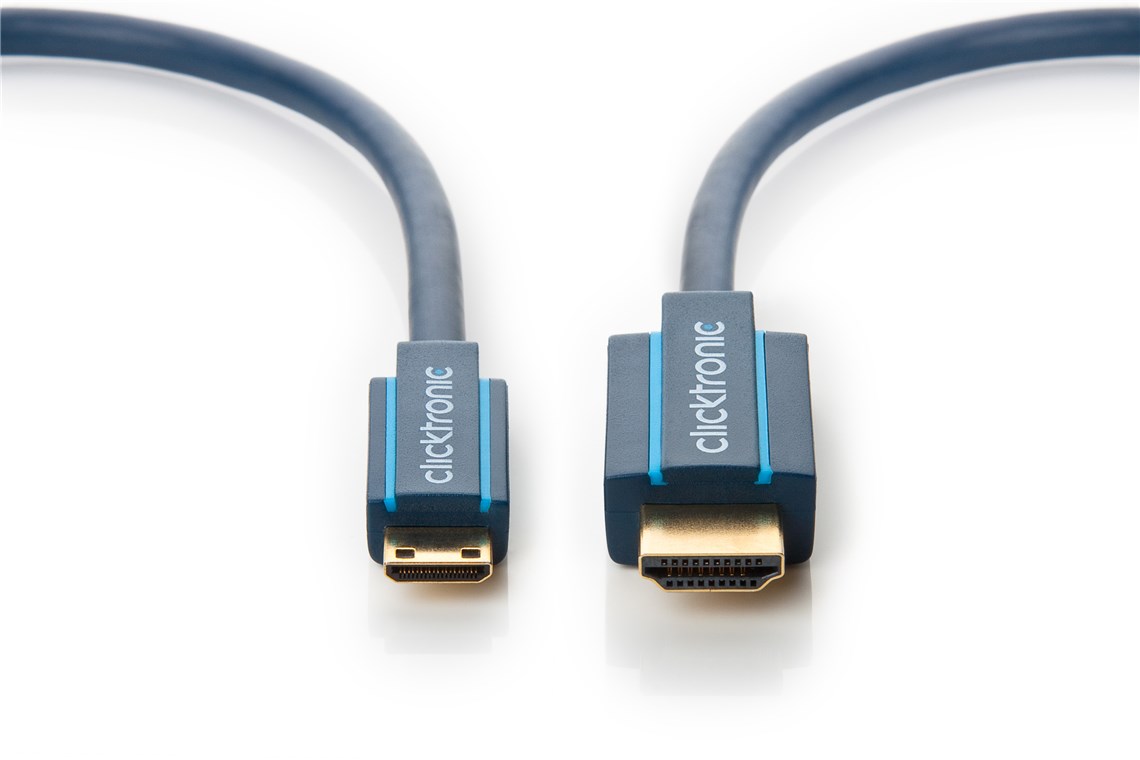

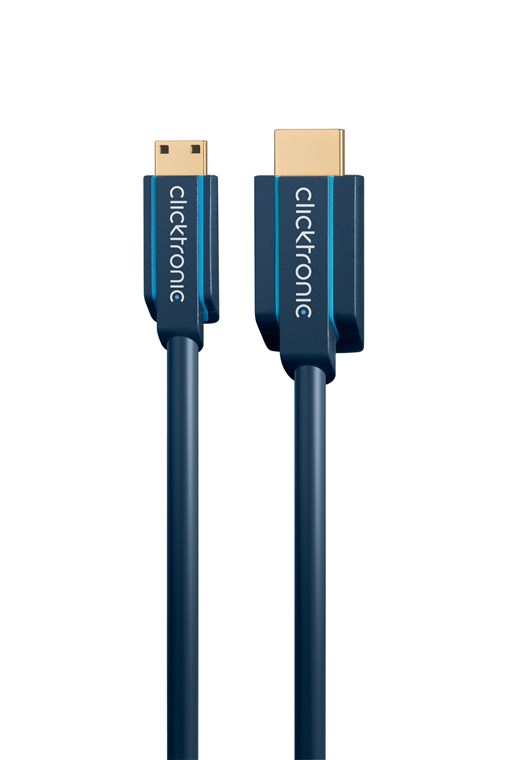

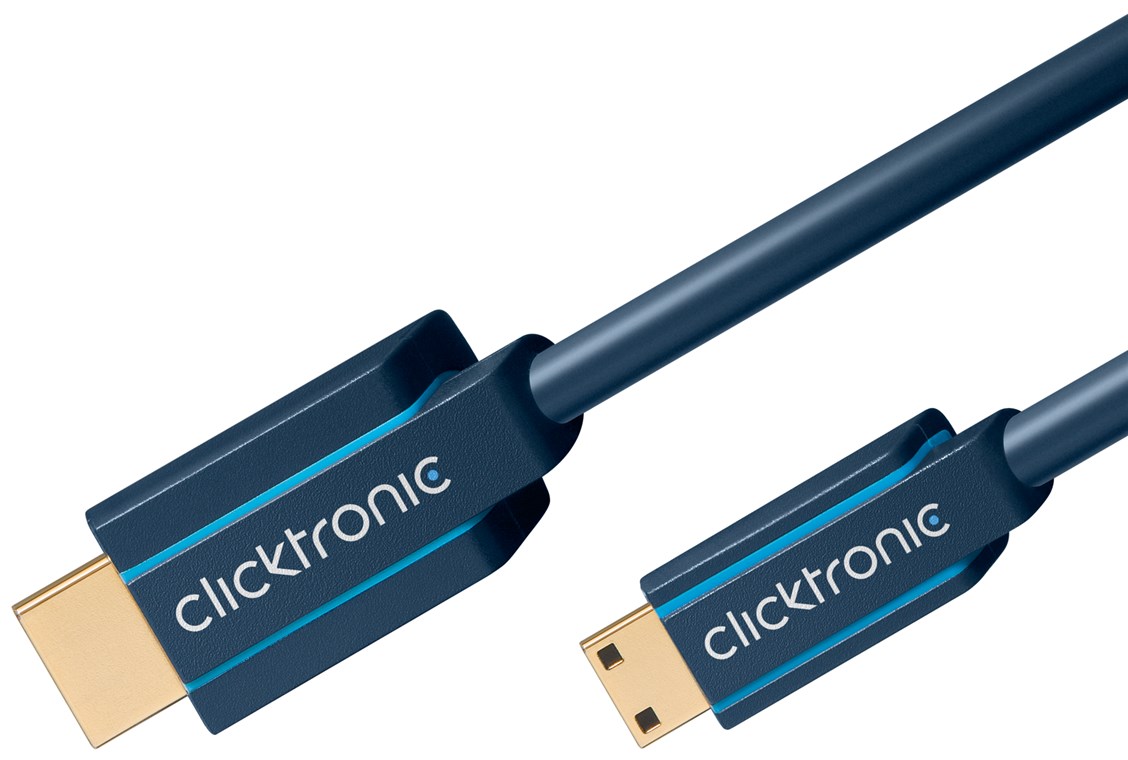

Mini-HDMI™ adapter cable with Ethernet

high speed adapter from HDMI™ to Mini-HDMI™

Enjoy movies and games clearly in high resolution and dazzling quality. What does this cable do to an audio video signal? Nothing. It is, however, precisely this feature which proves its quality. Thanks to pure materials, precise processing, and modern technology, it combines your HDMI™ device with mobile appliances. Therefore, you can be sure that you get the experience exactly as it was meant to be.

suitable for digital connection of mobile devices
pure copper conductor and 2-way shielding for clear signal quality
High-speed HDMI™ for 3D and Ultra HD up to 4K @ 50/60 Hz (2160 p)
integrated Ethernet channel saves additional network or audio cables
24 carat gold-plated contacts for minimum transmission resistance

General

Operating temperature up to	80 °C
Warranty	10 years
Markings	WEEE, CE, ULTRAHD 4K@50/60 Hz, HDMI™ High Speed with Ethernet
Consumption Unit	1 pc. in cardboard box
Operating temperature from	-10 °C
Packaging type	Retail Box

Connections

Connection 2, width	14 mm
Connection, type	HDMI™ male (type A)
Connection, width	20.4 mm
Connection, contact material	gold (24 kt)
Connection, height	11.4 mm
Connection 2, height	8.4 mm
Connection 2, type	HDMI™ mini male (type C)
Connection 2, length	36.3 mm
Connection, length	42.1 mm
Connection, shielding	yes
Connection, housing material	PVC

Cable

Kink protection	both sides
Cable length	3 m
Number of shieldings	2 x
Type 2, shielding	braid (copper) 112x
inner conductor, core diameter	0.25
Inner conductor material	OFC (99,9% oxygen-free copper)
Cable sheath diameter (approx.)	6 mm
Inner Conductor number	1 pieces
AWG	30
Cable type	round cable

Signal transmission

Impedance	100 Ω
max. bandwidth	340 MHz
max. transmission rate	10.2 Gbit/s

Downloads

Product data sheet pdf

Cable length

2 m 3 m

Article: 70323
