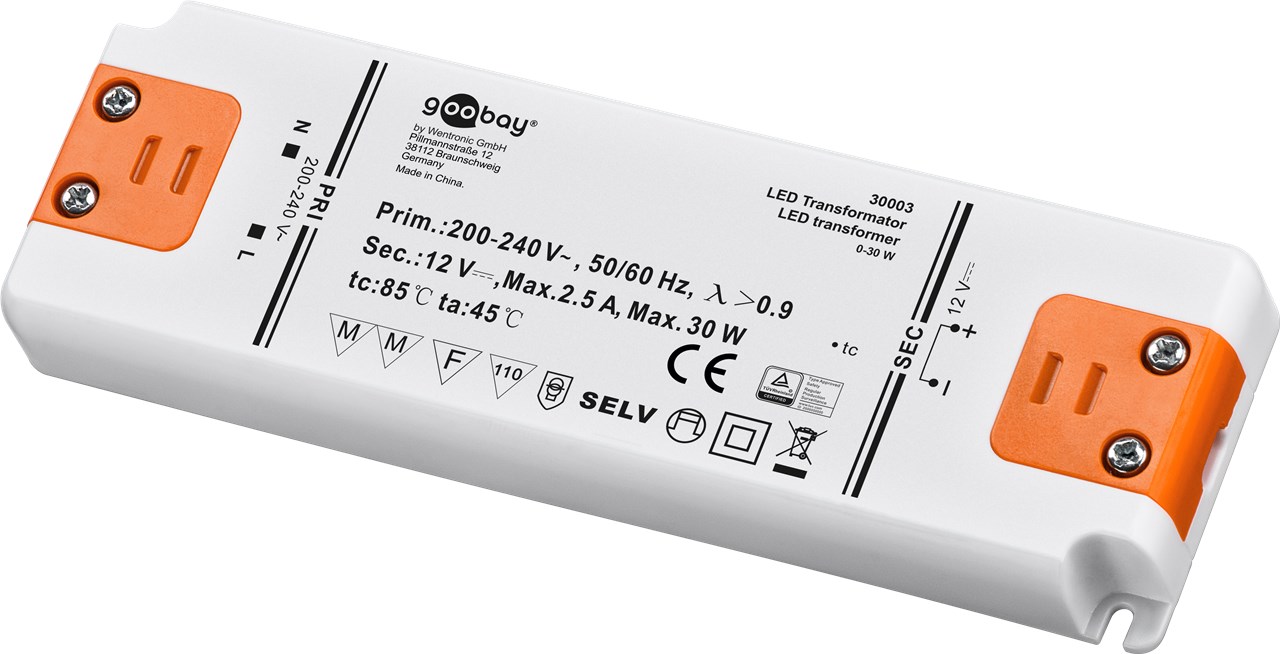

LED Transformer 12 V (DC)/30 W
12 V DC for LEDs up to 30 W total load
- DC current source for LEDs with electronic ballast unit
- flat design for space-saving installation

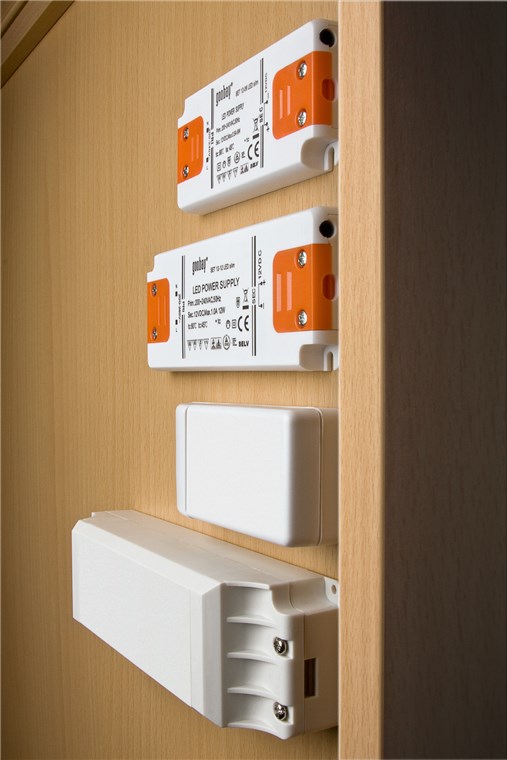

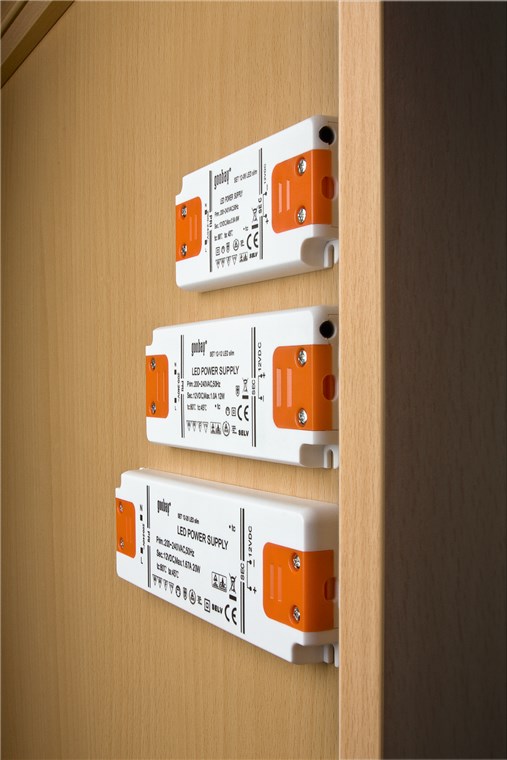

- the transformer is approved for installation in furniture
- safe electronic separation as per protection class II
- constant output voltage for parallel circuits
General
| Height |
17 mm |
| Operating temperature up to |
45 °C |
| Markings |
WEEE, CE, bauartgeprüft: TÜV Rheinland |
| Width |
45 mm |
| Model designation |
Goobay |
| Length |
150 mm |
| Color |
orange, white |
| Weight |
140 g |
| Consumption Unit |
1 pc. in cardboard box |
| Operating temperature from |
-20 °C |
| Packaging type |
Retail Box |
| Appliance Class |
II |
| protection class |
IP20 |
Performance
| max. performance |
30 W |
| No-load power consumption |
0.5 W |
Device connections
| Input Cross Section |
0.75 mm² |
| Output Cross Section |
0.75 mm² |
| number of inputs |
2 pcs. |
| Number of outputs |
2 ports |
| Input, Voltage Range |
200 - 240 (AC) V |
| Output, max. amperage |
2.5 A |
| Output, type |
Screw clamp |
| Input, type |
Screw clamp |
| Output, voltage (DC) |
12 V (DC) |
