Product and packaging similar. Subject to modifications and errors.

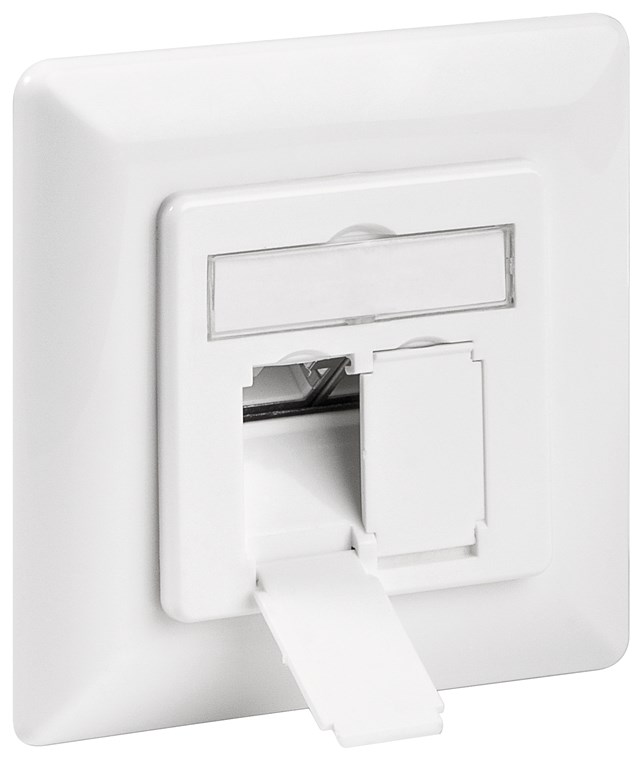

CAT 6 wall plate flush mounting
2x RJ45 network wall socket, shielded
suitable mounting frame 80x80, 96502
- CAT 6 Class E up to 250 MHz
- able for 1 GBit Ethernet / suitable for PoE+ according IEEE 802.3at
- central plate with integral dust cover plates
- viewing windows with label
- complete shielding of the RJ45 jack and the LSA block through full surrounded die cast metal-box
- design suitable: compatible metal plate to switch ranges
- suitable design: metal plate compatible with popular switch ranges
Technical specifications
General
| Markings | WEEE, CE |
| Color | white |
| Consumption Unit | 1 pc. in cardboard box |
| Packaging type | Bulk |
Connections
| Connection, type | for IDC connectors (toolless) |
| Connections, cable management | horizontal |
| Connection, shielding | yes |
Device connections
| Input, type | RJ45 female (8P8C) |
Cable
| Specification | CAT 6 |
Signal transmission
| max. bandwidth | 250 MHz |
£12.99 RRP
Packing units:
1 / 64
