Product and packaging similar. Subject to modifications and errors.

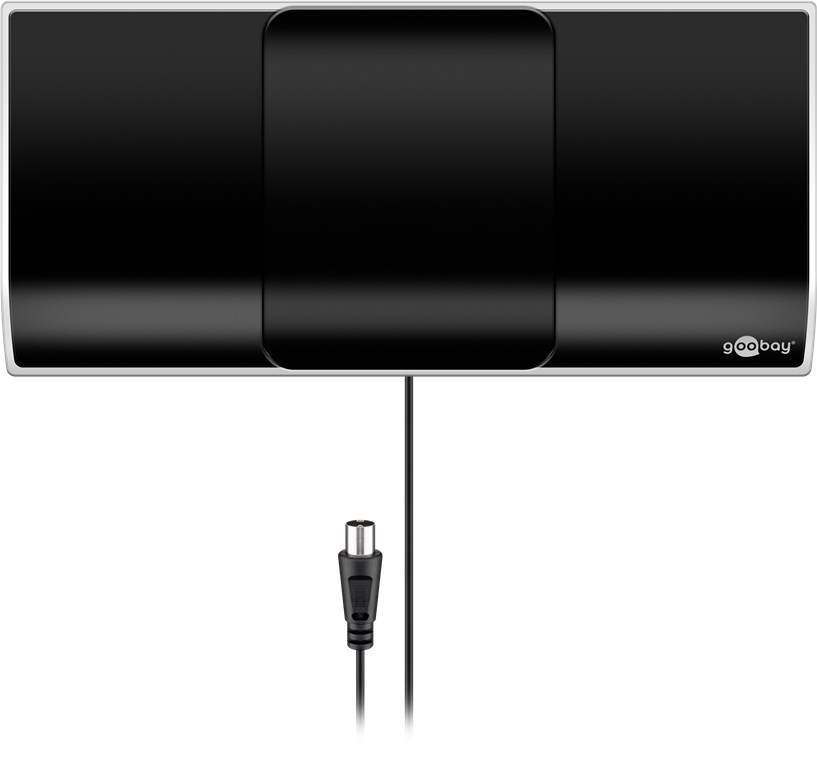

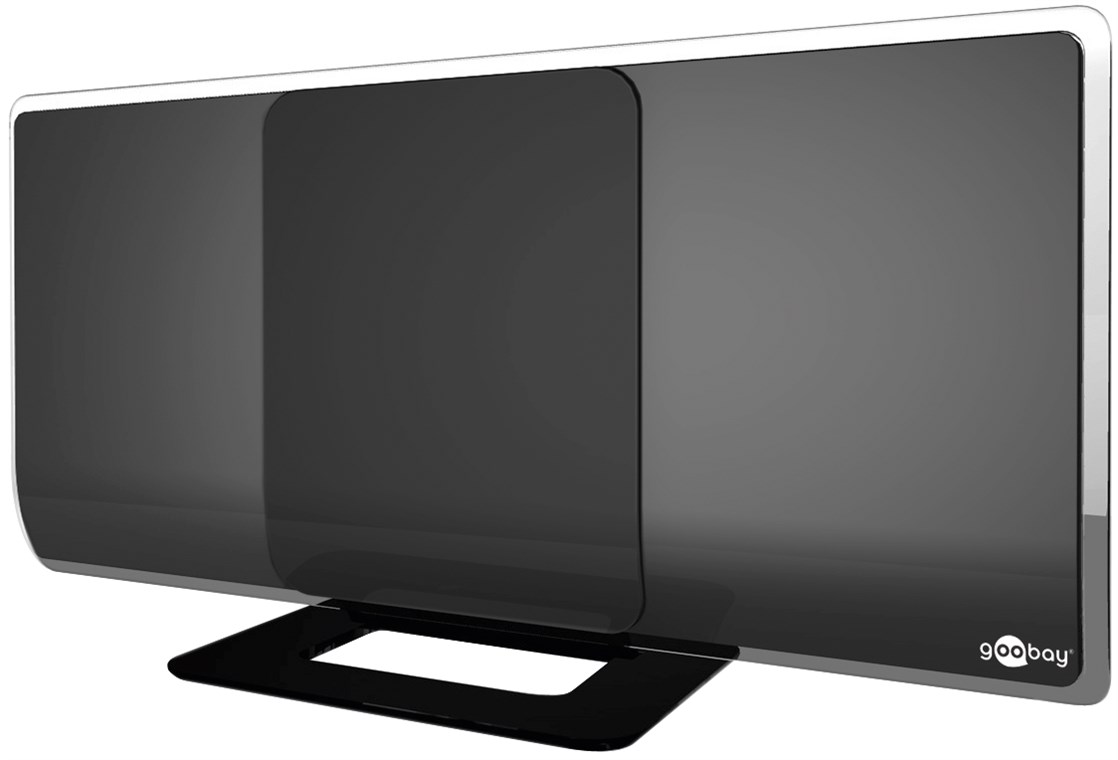

Active full HD DVB-T2 indoor antenna, incl. LTE/4G filter
with up to 13 dBi amplification for weak signal area
- for reception of analog and digital TV signals in the UHF (470 MHz - 790 MHz) range
- active DVB-T, and DVB-T2 antenna especially for HD/SD digital terrestrial TV reception
- amplifier gain (up to 13 dBi)
- omnidirectional and therefore no realignment (horizontal/vertical) necessary for differently polarized transmitters
- Recommended transmitter range: 0 - 25 km
- GSM/LTE/4G filter to avoid annoying interference by cell phones

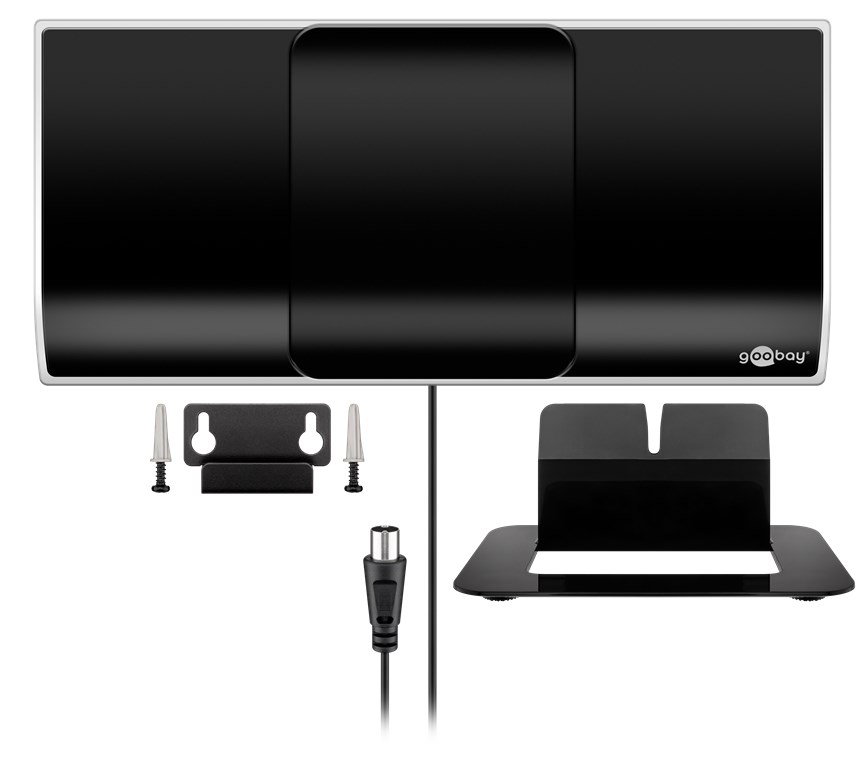

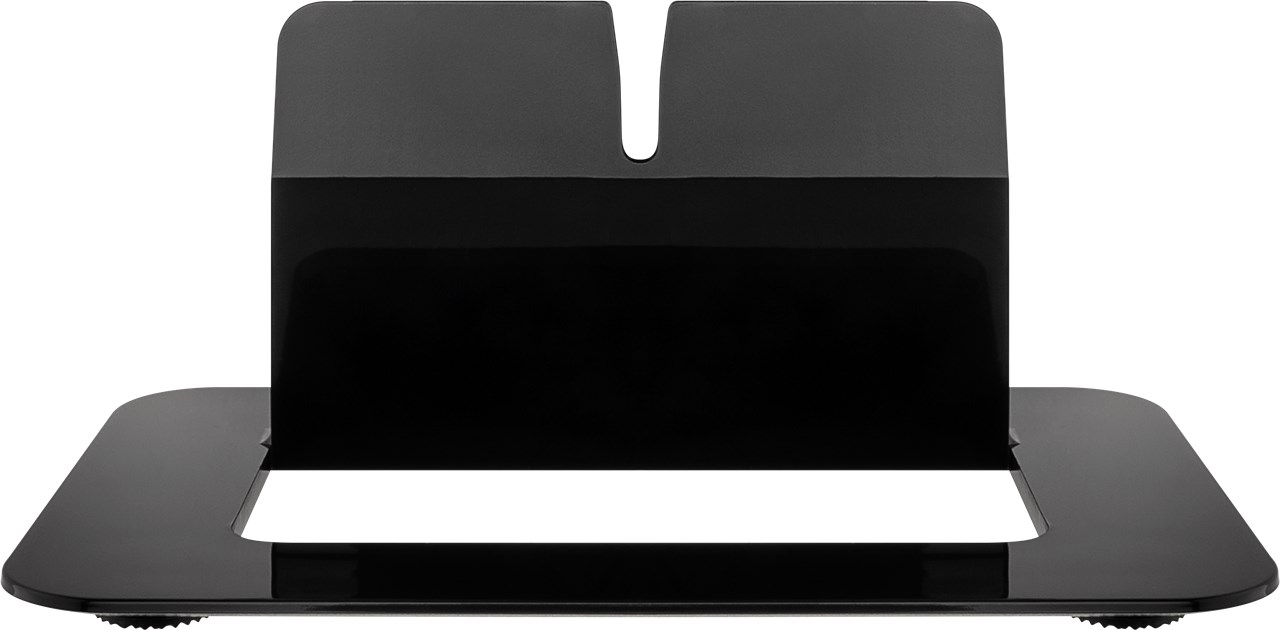

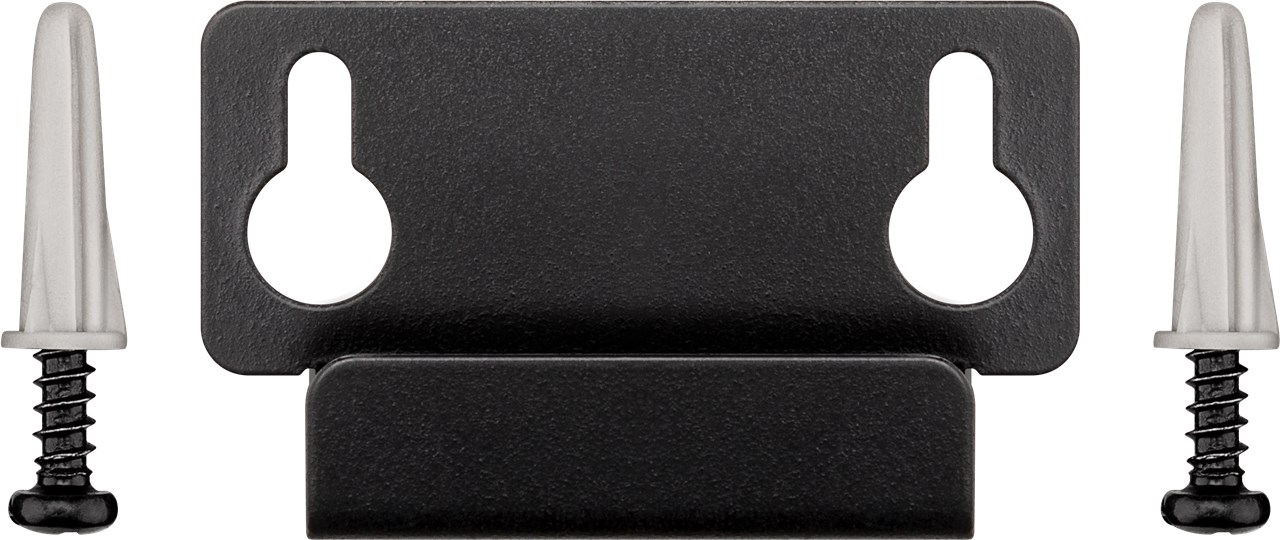

- stand or wall mounting
General
| Markings |
WEEE, CE, Goobay_DVB-T2_HD, 4G/LTE-Filter |
| Width |
149 mm |
| Length |
286 mm |
| Color |
black |
| Consumption Unit |
1 pc. in cardboard box |
| Packaging type |
Retail Box |
| depth |
20 mm |
| antenna Type |
Indoor Antenna |
Cable
Signal transmission
| Frequency range UHF to |
790 |
| antenna gain UHF |
13 dBi max. |
| blocking filter |
LTE/4G |
| Directivity pattern |
omnidirectional |
| Frequency Range UHF from |
470 |

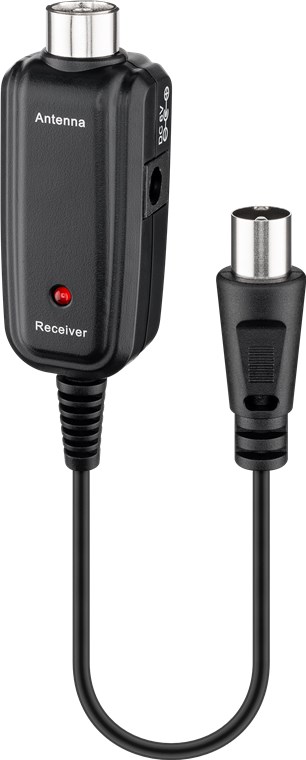

| Amplifier power-supply |
via power supply (Euro plug, 230V) |
| Signal amplification |
yes |
Scope of delivery
| power Supply |
100-240 V (Euro) |

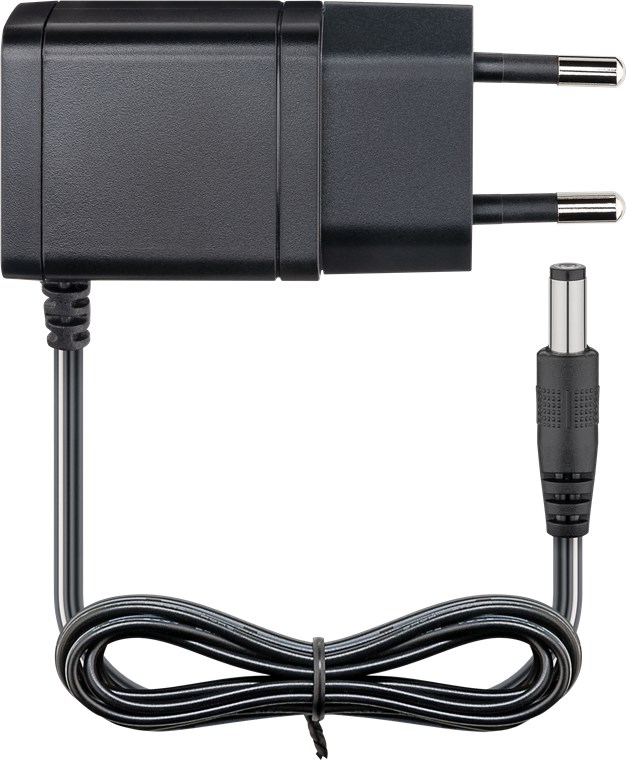

accessory - Power supply
| No-load power consumption |
0.03 W |
| Input AC frequency |
50/60 Hz |
| Output current |
0.15 A |
| Input voltage |
100-240 V |
| Output power |
0.9 W |
| Output voltage |
6 V |
| Model identifier |
S003ATV0600015 |
| Average active efficiency |
71.79 % |
| Input current |
0.15 A |
£35.99 RRP
Packing units:
1 / 5 / 10
