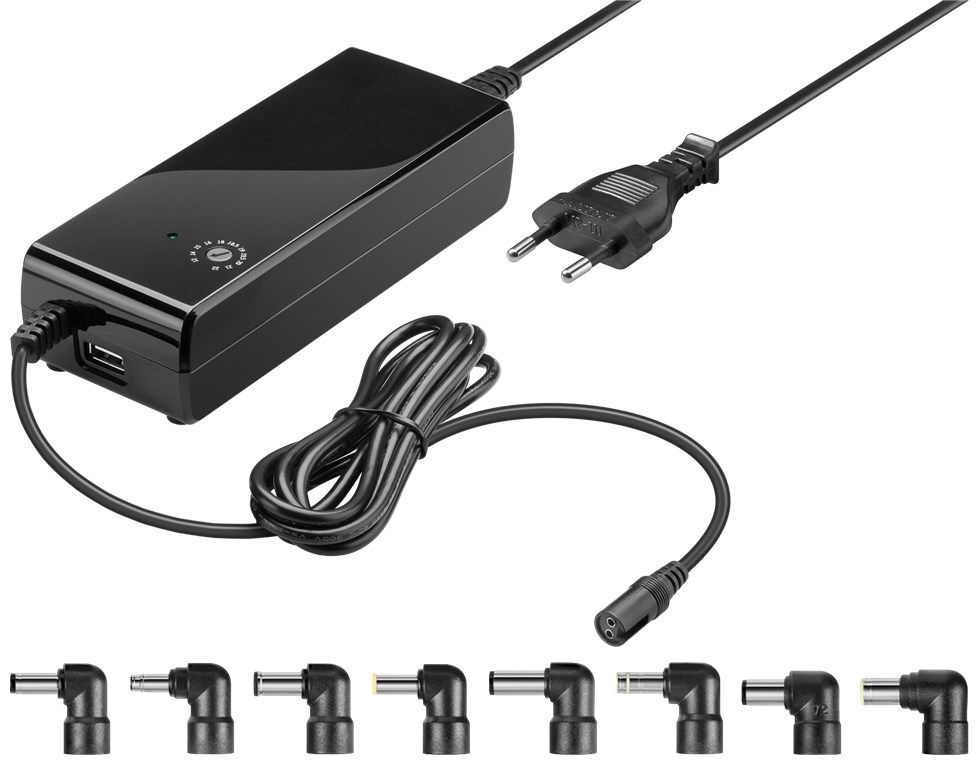

90 W Notebook Power Supply
incl. 1 USB and 8 DC adapter; 12 V - 22 V with max. 4 A
- provides stabilized direct current of 4A
- output voltage from 12 V to 22 V selectable via rotary switch
- various adapters for connection of popular notebooks included with delivery
- additional USB connector for simple connection of a smartphone/tablet
- up to 96% energy savings in standby mode
- thanks to wide-range input of 100 V to 240 V, perfectly suited for worldwide use
- fuses protect against short circuit, overload and overcurrent
General
| Height |
38 mm |
| Markings |
CE, WEEE, Haus, Quader |
| Width |
59 mm |
| Length |
154 mm |
| Color |
black |
| Weight |
480 g |
| Consumption Unit |
1 pc. in cardboard box |
| Packaging type |
Retail Box |
Performance
| Power consumption |
80 W |
| No-load power consumption |
0.28 W |
| Security Functions |
Short circuit, Overloading, Overcurrent |
Device connections
| voltage stabilization |
yes |
| Output, Voltage Step |
12, 14, 15, 16, 18, 18,5, 19, 19,5, 20, 21, 22 V |
| Output, min. amperage |
3.5 A |
| Input, Voltage Range |
100 - 240 (AC) V |
| Input current |
1.6 A |
| Average active efficiency |
87.2 % |
| Efficiency at low load (10 %) |
82 % |
| Output, max. amperage |
4 A |
| Output, type |
DC female (universal, 2-Pin) |
| Power frequency |
60 Hz |
| Input, type |
Euro male (Type C CEE 7/16) |
Cable
Scope of delivery
| Notebook adapter |
DC adapter (4,75 x 1,70 mm), DC adapter (5,00 x 1,00 mm), DC adapter (5,50 x 1,70 mm), DC adapter (5,50 x 2,50 mm), DC adapter (6,30 x 3,00 mm), DC adapter (6,50 x 1,40 mm), DC adapter (7,40 x 0,60 mm), DC adapter (7,90 x 0,90 mm), manual, USB 2.0 |
£44.99 RRP
Packing units:
1 / 10 / 20
